AC/BL Evolution Series Inverters

Portfolio of high-performance inverters (motor controllers) to accommodate a wide range of battery-powered electric and hybrid functionality, including traction, pump, steering, and generator applications.

Designed to maximize OEM flexibility, several motor technologies are supported with specific models offering continuous power levels from 1 to 50 kW and nominal battery voltages from 24 to 120 Vdc.

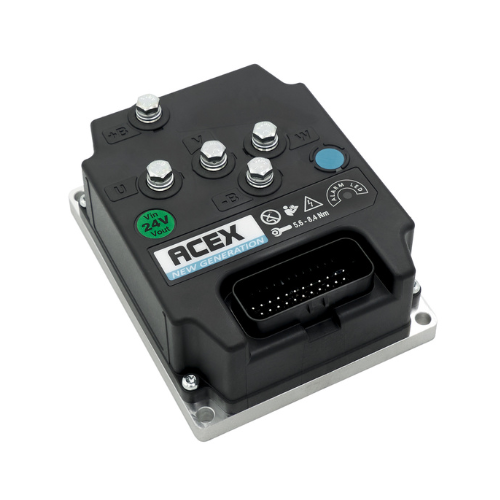

ACEX NEW GENERATION

ACEX NEW GENERATION is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 1 kW to 3.5 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque control is available. The I/Os accommodate a wide range of vehicle controls and sensors. ACEX NEW GENERATION can also interface with a wide range of external devices via CAN bus.

ACEX NEW GENERATION
Power supply 24 V, 36-48 V, 72-80 V
Maximum current (2')

24 V: 100 Arms to 240 Arms
36-48 V: 90 Arms to 210 Arms
72-80 V: 80 Arms, 120 Arms
Ambient temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)
Dimensions 120x150x77 mm (baseplate version)
Connector Ampseal 23 or 35 pins
Protection IP65
Options Aluminum base plate or finned heatsink
With or without power fuse
Standard (23p) or Premium (35p) connector
  • 24 V, 36-48 V, 72-80 V models offered
  • Field-oriented control (speed or torque control)
  • Inputs: Digital and analog inputs
  • PWM outputs: Voltage and current-controlled
  • High-side output for electromechanical brake
  • External Device Network: CAN bus interface
  • Ingress Protection: IP65
  • Regulatory: UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280 compliant

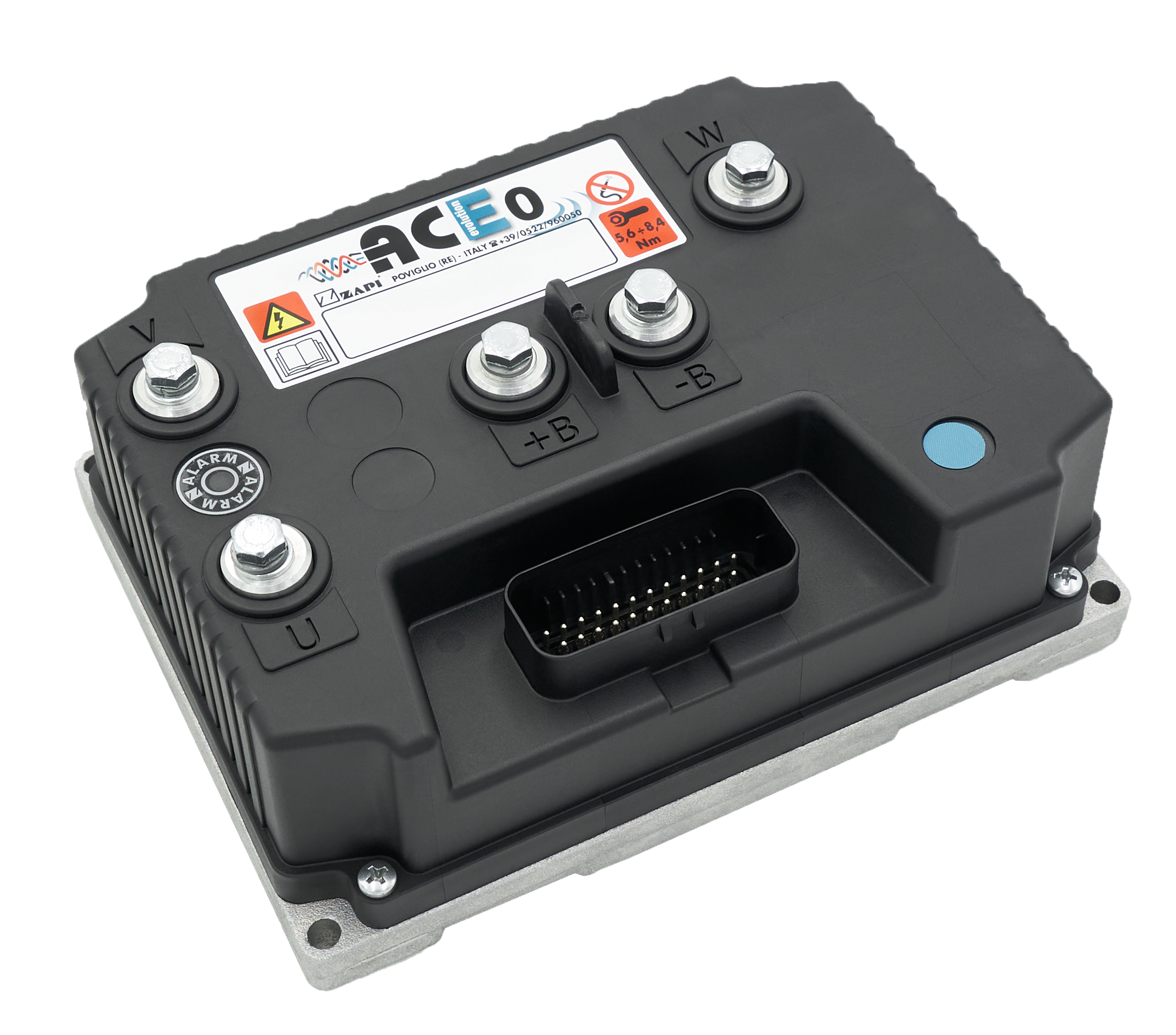

ACE0

ACE0 is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 2 kW to 7 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque control is available. The I/Os accommodate a wide range of vehicle controls and sensors. ACE0 can also interface with a wide range of external devices via CAN bus.

ACE0
Power supply 24 V, 36-48 V, 72-80 V, 96 V, 120 V
Maximum current (2')

24 V: 220 Arms to 350 Arms
36-48 V: 180 Arms to 320 Arms
72-80 V: 200 Arms
96 V: 100 Arms
120 V: 100 Arms
Ambient temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)
Dimensions 150x200x79 mm (baseplate version)
150x220x105 mm (heatsink version)
Connector Ampseal 35 pins
Protection IP65
Options Aluminum base plate or finned heatsink
With or without power fuse
  • 24 V, 36-48 V, 72-80 V, 96 V
  • Field-oriented control (speed or torque control)
  • Digital and analog inputs
  • Voltage and current-controlled PWM outputs
  • High-side output for electromechanical brake
  • CAN bus interface
  • IP65
  • UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280 compliant

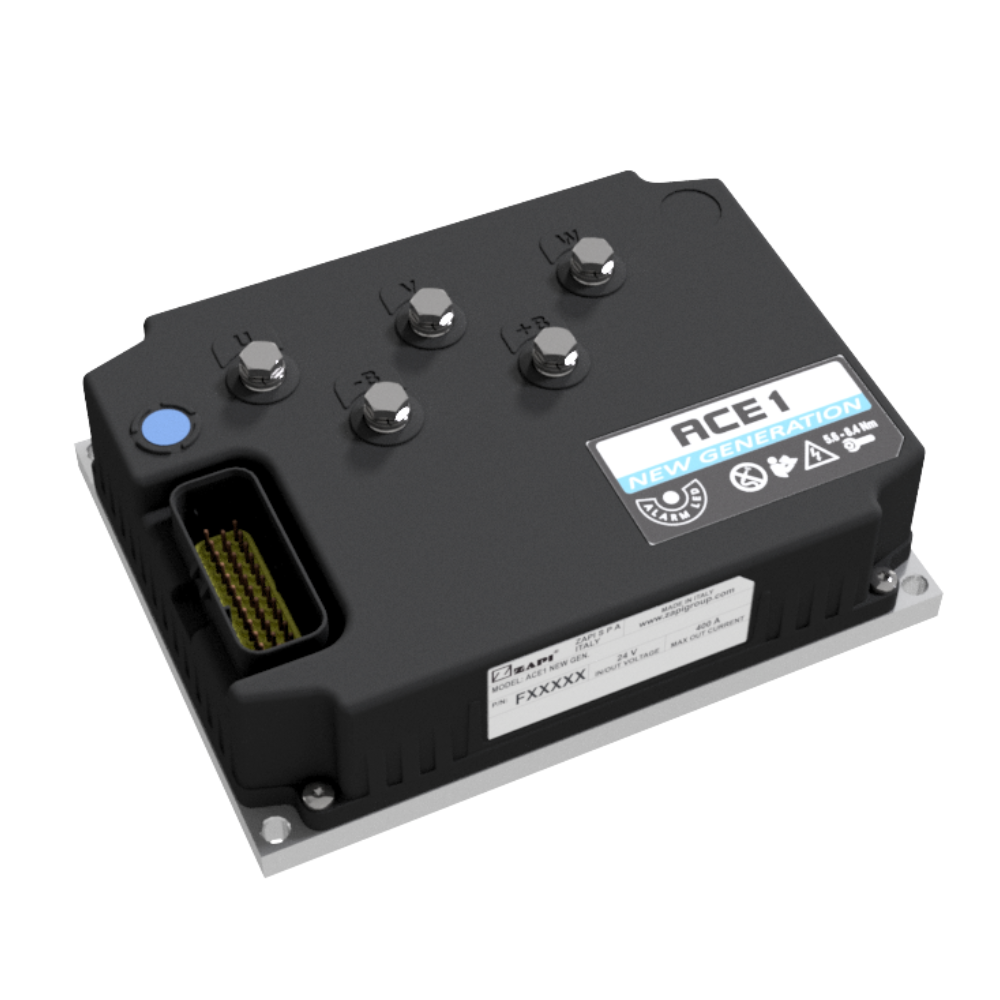

ACE1 NEW GENERATION

ACE1 NEW GENERATION is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 4 kW to 7 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque controls are available. The I/Os accommodate a wide range of vehicle controls and sensors. ACE1 NEW GENERATION can also interface with a wide range of external devices via CAN bus.

ACE1 NEW GENERATION
Power supply 24 V, 36-48 V
Maximum current (2’) 24 V: 350 Arms, 400 Arms
36-48 V: 350 Arms
Ambient Temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)



Dimensions 150x200x65[77]* (baseplate version)
150x200x99[111]*  (heatsink version)
Connector Ampseal 23 or 35 pins
Protection IP65
Options

Aluminum base plate or finned heatsink
With or without power fuse
Standard (23p) or Premium (35p) Ampseal connector
  • 24 V, 36-48 V
  • Field-oriented control (speed or torque control)
  • Digital and analog inputs
  • Voltage and current-controlled PWM outputs
  • High-side output for electromechanical brake
  • Isolated CAN bus interface
  • IP65
  • UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280 compliant

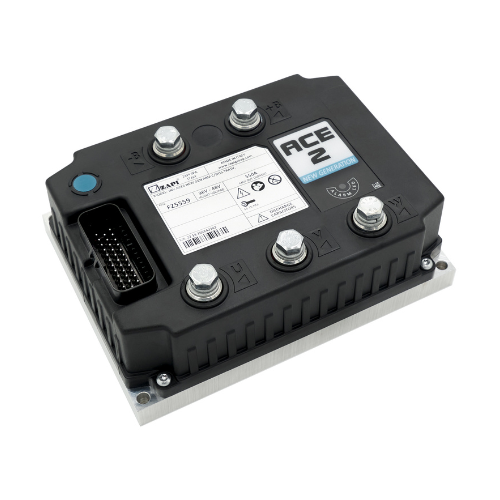

ACE2 NEW GENERATION

ACE2 NEW GENERATION is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 4 kW to 17 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque controls are available. The I/Os accommodate a wide range of vehicle controls and sensors. ACE2 NEW GENERATION can also interface with a wide range of external devices via CAN bus.

ACE2 NEW GEN
Power supply 24 V, 36-48V, 72-80 V, 96 V
Maximum current (2')

24 V: 350 Arms to 550 Arms
36-48 V: 350 Arms to 550 Arms
72-80 V: 230 Arms to 400 Arms
96 V: 250 Arms to 400 Arms
Ambient temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)
Dimensions 150x200x91 mm (baseplate version)
150x200x121 mm (heatsink version)
150x200x110 mm (heatsink version)
Connector Ampseal 23 or 35 pins
Protection IP65
Options

Aluminum base plate or finned heatsink
With or without power fuse
Standard (23p) or Premium (35p) Ampseal connector
  • 24 V, 36-48 V, 72-80 V, 96 V
  • Field-oriented control (speed or torque control)
  • Digital and analog inputs
  • Voltage and current-controlled PWM outputs
  • High-side output for electromechanical brake
  • Isolated CAN bus interface
  • IP65
  • UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280 compliant

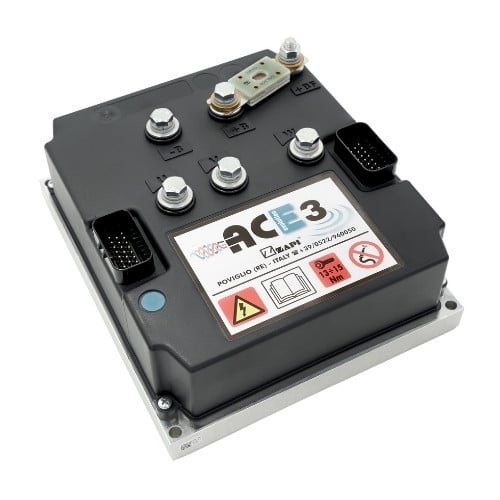

ACE3

ACE3 is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 7.5 kW to 20 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque controls are available. The I/Os accommodate a wide range of vehicle controls and sensors. ACE3 can also interface with a wide range of external devices via CAN bus.

ACE3
Power supply 24 V, 36-48V, 72-80 V
Maximum current (2')

24 V: 700 Arms
36-48 V: 600 Arms, 650 Arms
72-80 V: 450 Arms, 550 Arms
Ambient temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)
Dimensions

230x200x103 mm (baseplate version)
230x200x123 mm (heatsink version)
Connector Ampseal 23 pins or 2 x 23 pins
Protection IP65
Options Aluminum base plate or finned heatsink
With or without power fuse
One or two 23p Ampseal connectors
  • 24 V, 36-48 V, 72-80 V
  • Field-oriented control (speed or torque control)
  • Digital and analog inputs
  • Voltage and current-controlled PWM outputs
  • CAN bus interface
  • IP65
  • UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280

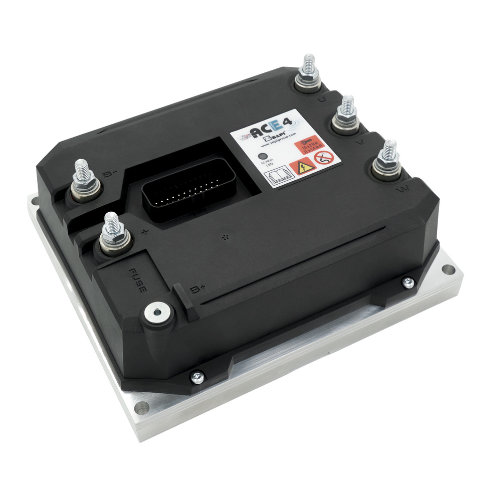

ACE4

ACE4 is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 15 kW to 30 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque controls are available. The I/Os accommodate a wide range of vehicle controls and sensors. ACE4 can also interface with a wide range of external devices via CAN bus.

ACE4
Power supply 36-48 V, 72-80 V, 96 V, 120 V
Maximum current

36-48 V: 800 Arms to 1000 Arms
72-80 V: 700 Arms to 900 Arms
96 V: 700 Arms to 900 Arms
120 V: 400 Arms
Ambient temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)
Dimensions

235x204x108 mm (baseplate version)
235x204x125 mm (heatsink version)
250x204x125 mm (larger heatsink version)
285x200x123 mm (liquid cooling version)
Connector Ampseal 23 or 35 pins
Protection IP65
Options

Aluminum base plate or finned heatsink
With or without power fuse
Standard (23p) or Premium (35p) Ampseal connector
  • 36-48 V, 72-80 V, 96 V, 120 V
  • Field-oriented control (speed or torque control)
  • Digital and analog inputs
  • Voltage and current-controlled PWM outputs
  • Isolated CAN bus interface
  • IP65
  • UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280 compliant

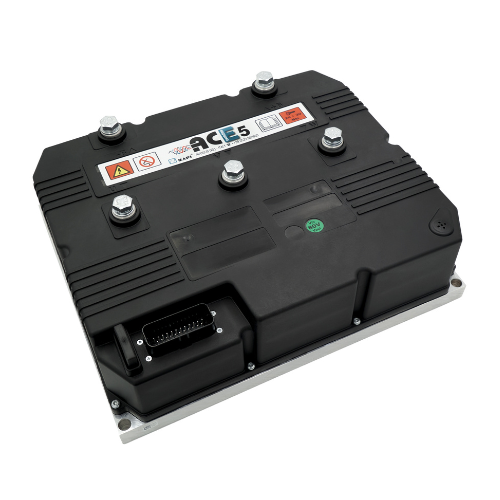

ACE5

ACE5 is designed to control several types of motors (AC induction, SPM, IPM, SRM, SRPM) from 16 kW to 35 kW continuous power in battery-powered electric and hybrid vehicles. Speed or torque controls are available. The I/Os accommodate a wide range of vehicle controls and sensors. ACE5 can also interface with a wide range of external devices via CAN bus.

ACE5
Power supply 36-48 V, 72-80 V, 96 V, 120 V
Maximum current (2')

36-48 V, 72-80 V: 1000 Arms
96 V: 800 Arms
120 V: 750 Arms
Ambient temperature range -40 °C to +40 °C
Maximum heatsink temperature 85 °C (start of current reduction)
Dimensions

370x300x124 mm (baseplate version)
370x300x144 mm (heatsink version)
400x300x144 mm (wider heatsink version)
398x300x174 mm (higher heatsink version)
Connector Ampseal 35 pins
Protection IP65
Options Aluminum base plate or finned heatsink
  • 36-48 V, 72-80 V, 96 V, 120 V
  • Field-oriented control (speed or torque control)
  • Digital and analog inputs
  • Voltage and current-controlled PWM outputs
  • CAN bus interface
  • IP65
  • UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175-2020 | EN280 compliant
