EPS Integrated Steering Systems
The EPS Steering Systems are electrical steering controllers and integrated units designed to implement steer-by-wire or assisted steering solutions. They are compatible with various motor types including induction and brushless, interface easily via CAN bus, and feature redundancy of microcontrollers and sensors to fulfill ISO13849 safety requirements. These systems offer field-oriented speed or position control, PWM outputs, and torque feedback.

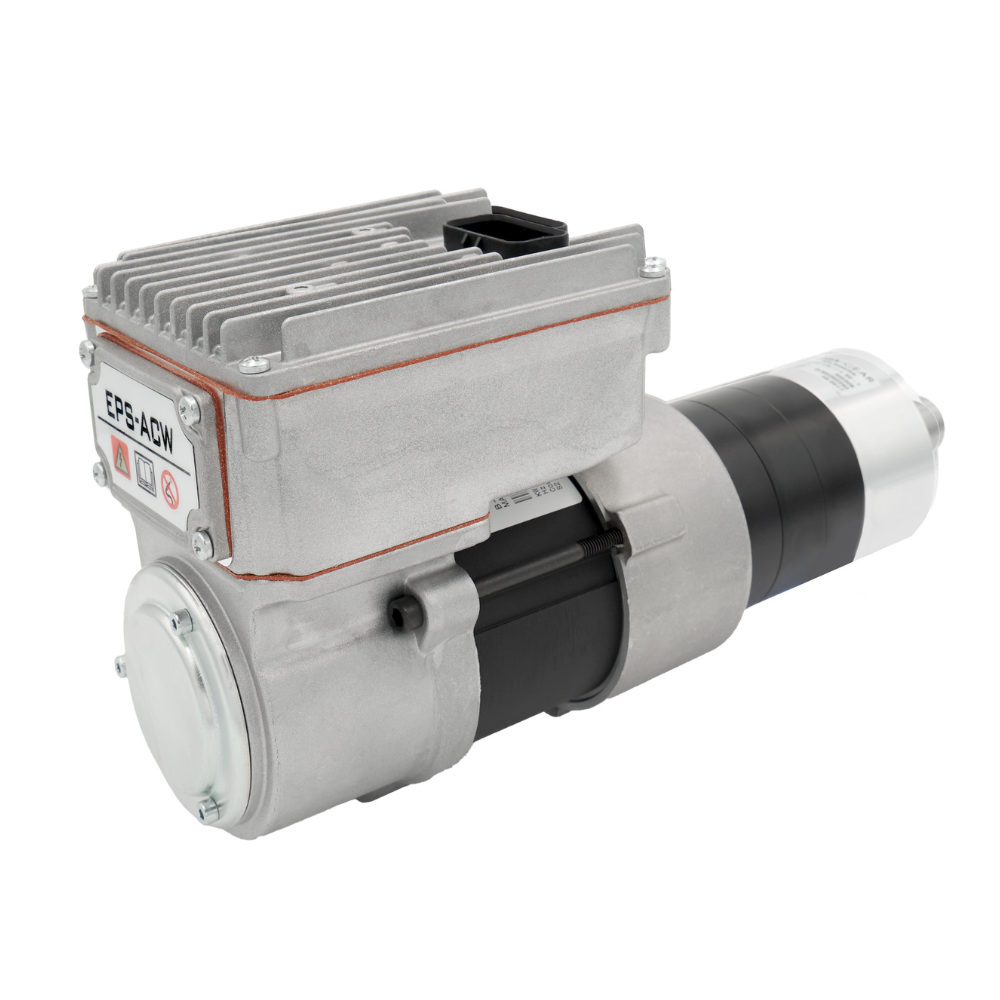

EPS ACW
EPS-ACW is an integrated electrical steering unit that includes a driving inverter and an induction motor for implementing a steer-by-wire solution. This integrated solution minimizes the wiring, reduces the installation time and improves reliability. It can easily interface with a wide range of external devices via CAN bus. The redundancy of microcontrollers and sensors makes it possible to fulfill ISO13849 category #3 and performance level requirements.
- Power Section
- Mechanics
- Features
| Power supply | 24-36 V, 36-48 V, 72-80 V |
| Maximum current (2’) | 24-36 V: 70 Arms 36-48 V: 50 Arms, 70 Arms 72-80 V: 40 Arms, 50 Arms |
| Ambient temperature range | -30 °C to +40 °C |
| Maximum heatsink temperature | 80 °C |
| Dimensions | 152x110x72 mm |
| Connector | Ampseal 23 pin |
| Protection | IP65 |
| Options | Available with motor or stand alone |
- 24-36 V, 36-48 V, 72-80 V
- Field-oriented control (speed or position control)
- Voltage and current-controlled PWM outputs
- Torque feedback device (TFD) output
- Multiple integrated motor and gearbox combinations are available
- CAN bus interface
- IP65
- UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175:2020 compliant

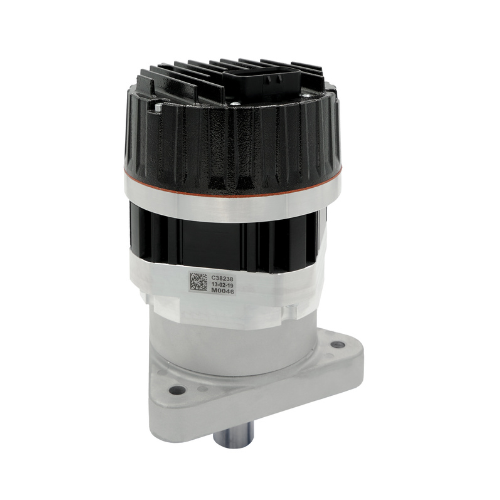

EPS BLI
.png?width=500&height=500&name=Untitled%20design%20(32).png "EPS BLI")
- Power Section
- Mechanics
- Features
| Power supply | 24-36 V, 36-48 V, 72-80 V |
| Maximum current | 24-36 V: 50 Arms, 70 Arms 36-48 V: 70 Arms 72-80 V: 40 Arms |
| Ambient temperature range | -30 °C to +40 °C |
| Maximum heatsink temperature | 80 °C |
| Dimensions | 192x132x132 mm |
| Connector | Ampseal 23 pin |
| Protection | IP65 |
- 24-36 V, 36-48 V
- Field-oriented control (speed or position control)
- Voltage and current-controlled PWM outputs
- Torque feedback device (TFD) output
- Multiple integrated motor and gearbox combinations are available
- CAN bus interface
- IP65
- UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175:2020 compliant
EPS AC0 AMPSEAL
.png?width=500&height=500&name=Untitled%20design%20(33).png "EPS AC0 Ampseal")
- Power Section
- Mechanics
- Features
| Power supply | 24-48 V, 48-80 V |
| Maximum current (2') | 24-48 V: 40 Arms, 70 Arms 48-80 V: 50 Arms |
| Ambient temperature range | -30 °C to +40 °C |
| Maximum heatsink temperature | 78 °C |
| Dimensions | 150x120x54 mm |
| Connector | Ampseal 23 pins |
| Protection | IP54 |
- 24-48 V, 48-80 V
- Field-oriented control (speed or position control)
- Voltage and current-controlled PWM outputs
- Torque feedback device (TFD) output
- Multiple integrated motor and gearbox combinations are available
- CAN bus interface
- IP65
- UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175:2020 compliant

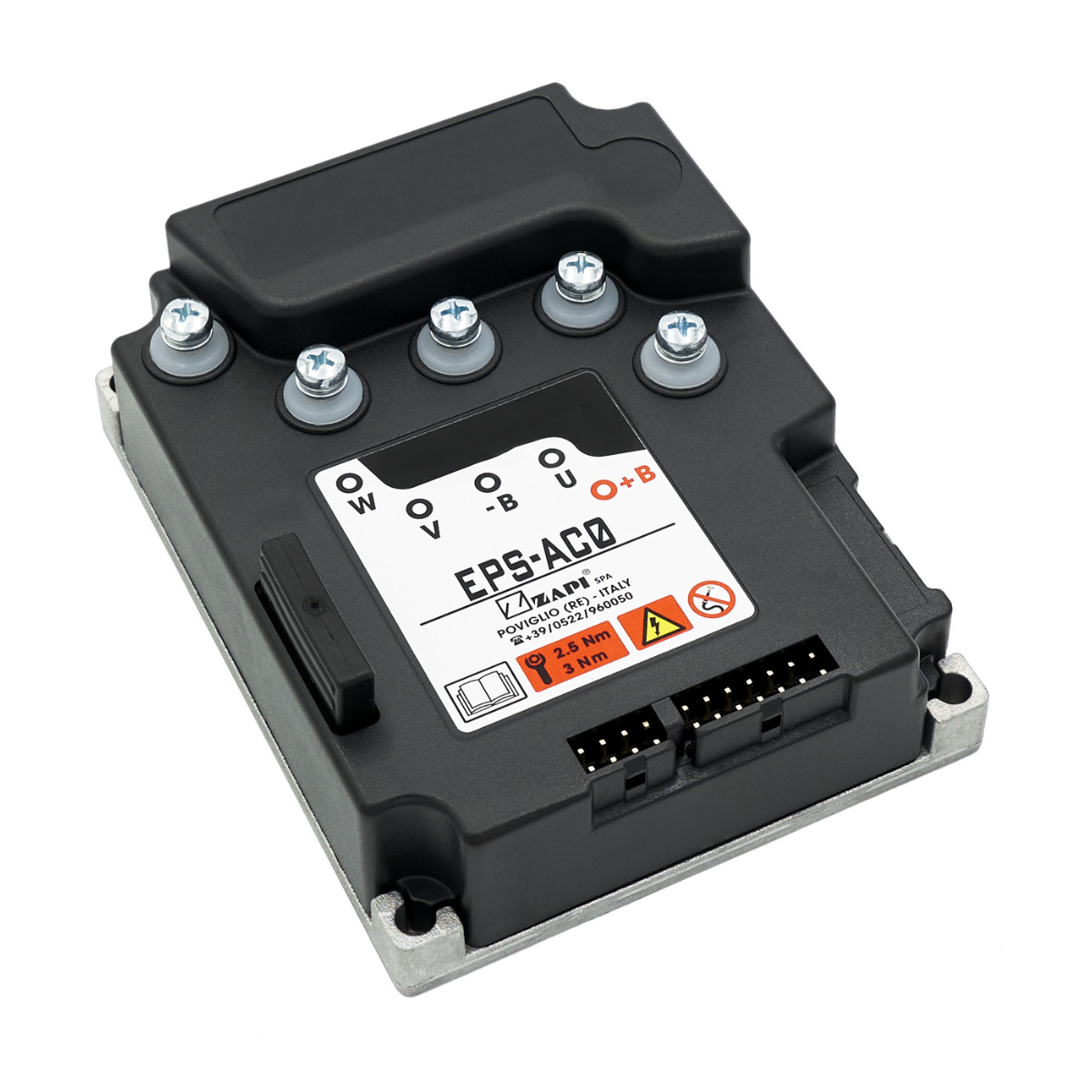

EPS AC0
- Power Section
- Mechanics
- Features
| Power supply | 24-48 V, 48-80 V |
| Maximum current (2') | 24-48 V: 40 Arms, 70 Arms 48-80 V: 50 Arms |
| Ambient temperature range | -30 °C to +40 °C |
| Maximum heatsink temperature | 78 °C |
| Dimensions | 150x120x54 mm |
| Connector | Mini-Fit |
| Protection | IP54 |
- Double microcontroller
- Can interface
- Digital I/O
- Twin pot or incremental encoder sensor
- Wire guidance configuration

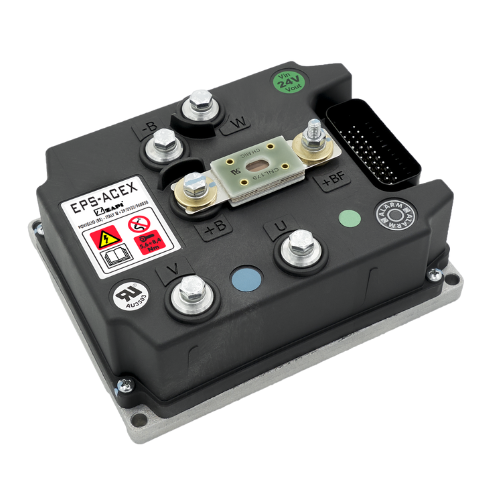

EPS ACEX
.png?width=500&height=500&name=Untitled%20design%20(60).png "EPS ACEX")
- Power Section
- Mechanics
- Features
| Power supply | 80 V |
| Maximum current | 115 Arms |
| Ambient temperature range | -40 ºC to +40 ºC |
| Maximum heatsink temperature | 85 ºC |
| Dimensions | 180x138x86 mm |
| Connector | Ampseal 35 pins |
| Protection | IP65 |
- 80 V
- Field-oriented control (speed or position control)
- Voltage and current-controlled PWM outputs
- Torque feedback device (TFD) output
- Multiple integrated motor and gearbox combinations are available
- CAN bus interface
- IP65
- UL 583 | EN12895:2015 + A1:2019 | EN13849 | EN1175:2020 compliant
