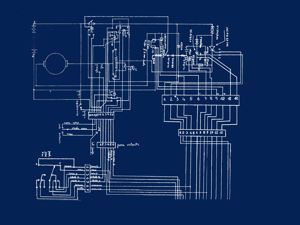

electric scheme by MrZ

DISPLAYS

Our displays feature indicator and intelligent dashboard devices suitable for battery-powered vehicles equipped with any Zapi drive. They provide essential information such as battery state of charge, operating hours, and alarm codes, with some offering diagnostic and set-up capabilities for the truck system. These displays are designed to work in combination with Zapi motor controllers.



MDI CAN

MDI-CAN is an indicator suitable for every type of battery-powered vehicle equipped with any Zapi drive. It allows high precision, reliability, and adaptability to measure the battery state of charge and calculate working hours. It can easily work in combination with Zapi motor controllers.

Features:

  • 24 V
  • 5-digit text alarm
  • Backlight
  • 1 alarm LED
  • Mini-Fit connector with rubber cover
  • Indications: battery state of charge, operating hours counter, alarm codes
MDI can

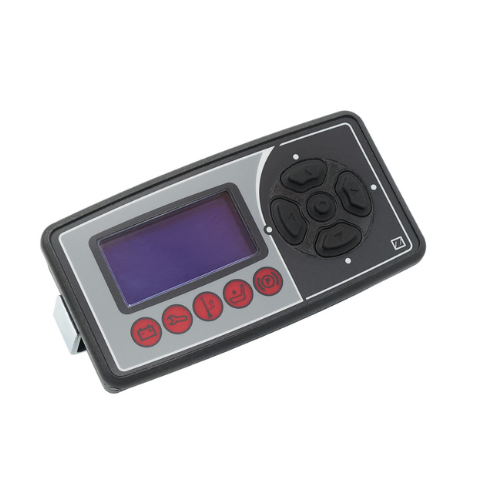

ECO SMART DISPLAY

Eco Smart Display is an intelligent dashboard capable of providing diagnostic and set-up for a truck system: Eco Smart Display, motor controllers, and valve controllers. It features an alphanumeric LCD display and a built-in backlight. Five built-in red LEDs provide the operator immediate information about the main truck devices. Five buttons allow access to the configuration parameters.

Features:

  • 24 V, 36 V, 48 V, 80 V
  • LCD 128x64 with backlight
  • Display indications: battery state of charge, performance level, speed reduction accelerator level, ground speed, steering angle, travel direction
  • Five status LEDs: battery, alarm, overtemperature, seat, handbrake
  • Five navigation buttons
  • Mini-Fit connector
  • IP65 (Front), IP55 (Back) compliant
eco smart display

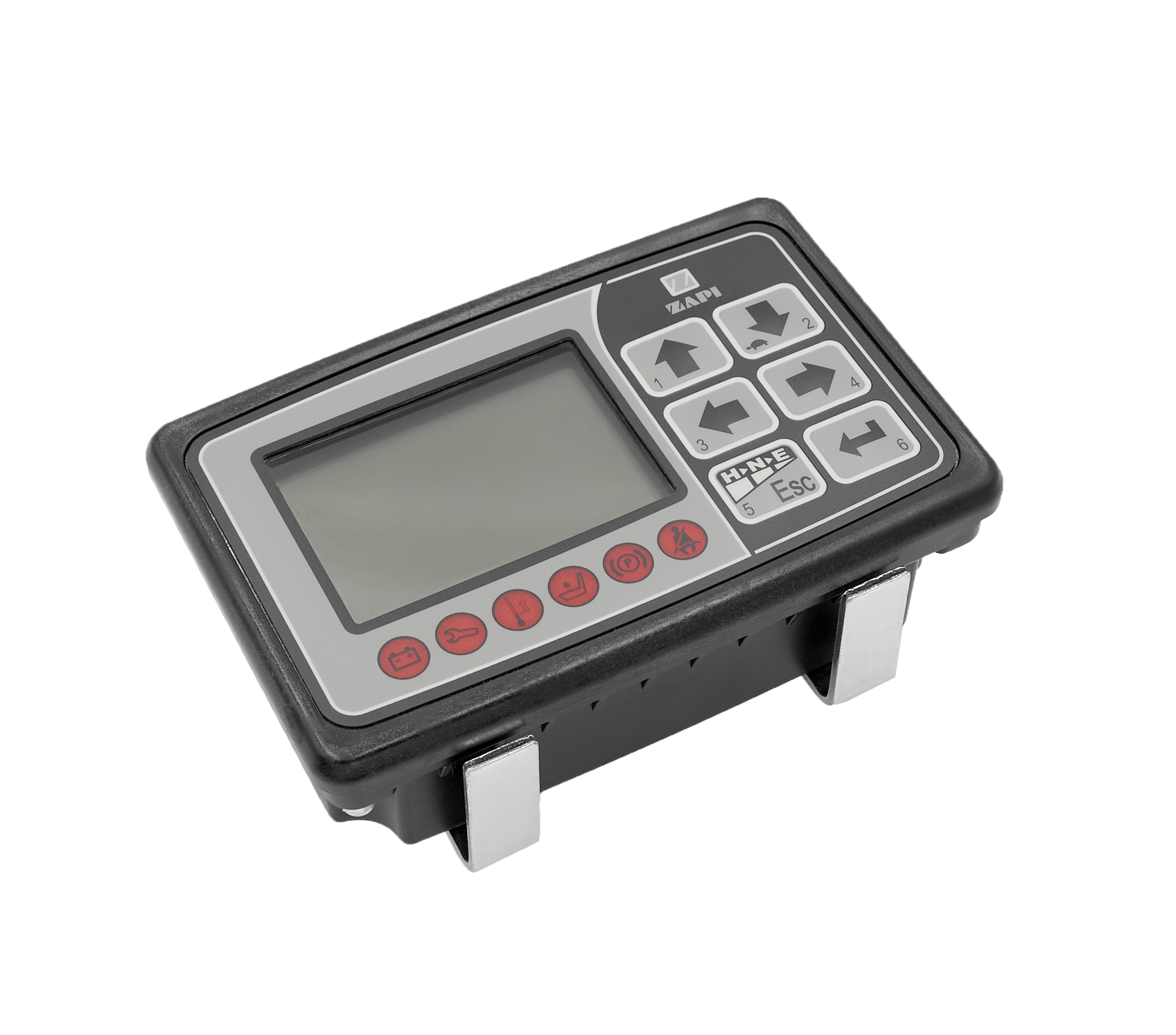

GRAPHIC SMART DISPLAY

Graphic Smart Display is an intelligent dashboard capable of providing diagnostic and set-up for the whole truck system: Graphic Smart Display itself, motor controllers, and valve controllers. It features an alphanumeric LCD display and a built-in backlight. Six built-in red LEDs provide the operator immediate information about the main truck devices. Five buttons allow access to the configuration parameters.

Features:

  • 24 V, 36 V, 48 V, 80 V
  • LCD 240x160 with backlight
  • Display indications: battery state of charge, performance level, speed reduction accelerator level, ground speed, steering angle, travel direction
  • 6 status LEDs: battery, alarm, overtemperature, seat, handbrake, seat belt
  • 6 navigation buttons
  • 4 analog/digital I/O
  • 1 negative output
  • Mini-Fit connector
  • IP65 (Front), IP55 (Back) compliant
GRAPHIC SMART DISPLAY
