SMART CONSOLE

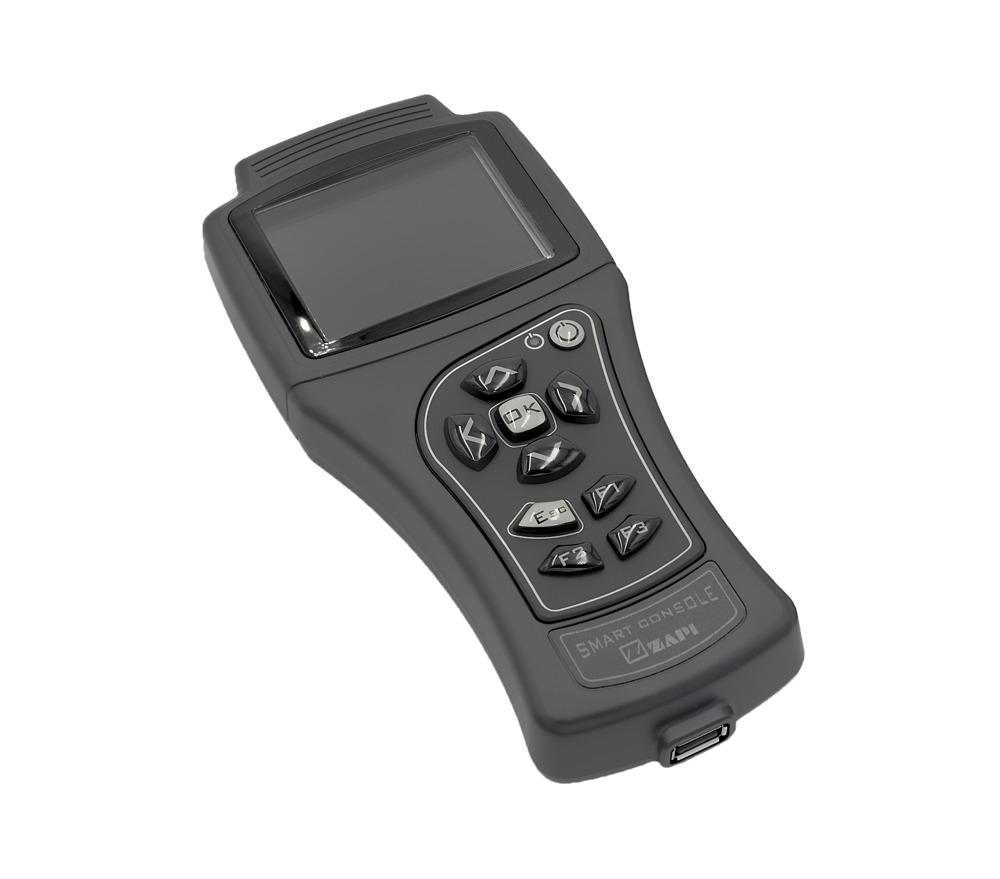

The Smart Console is a handheld tool for setting up and programming Zapi products. It features a clean and user-friendly interface and a bright display that simplifies access to parameters, readouts, and alarms. A USB port allows the use of a memory stick.
Features:
- 3.2’’ TFT Color Display
- Connection via CAN or serial line (compatibility mode)
- Power supply from a truck battery (24 V to 80 V) or from onboard NiMh/Alkaline AA batteries
- USB connection to a flash drive
- Password-protected access to the controller parameter
- Parameters save/restore (to USB)
- Data-logging of CAN messages (to USB)
- Inverter software upload (from USB)
- Serial and DEUTSCH connectors included
SMART ANTENNA

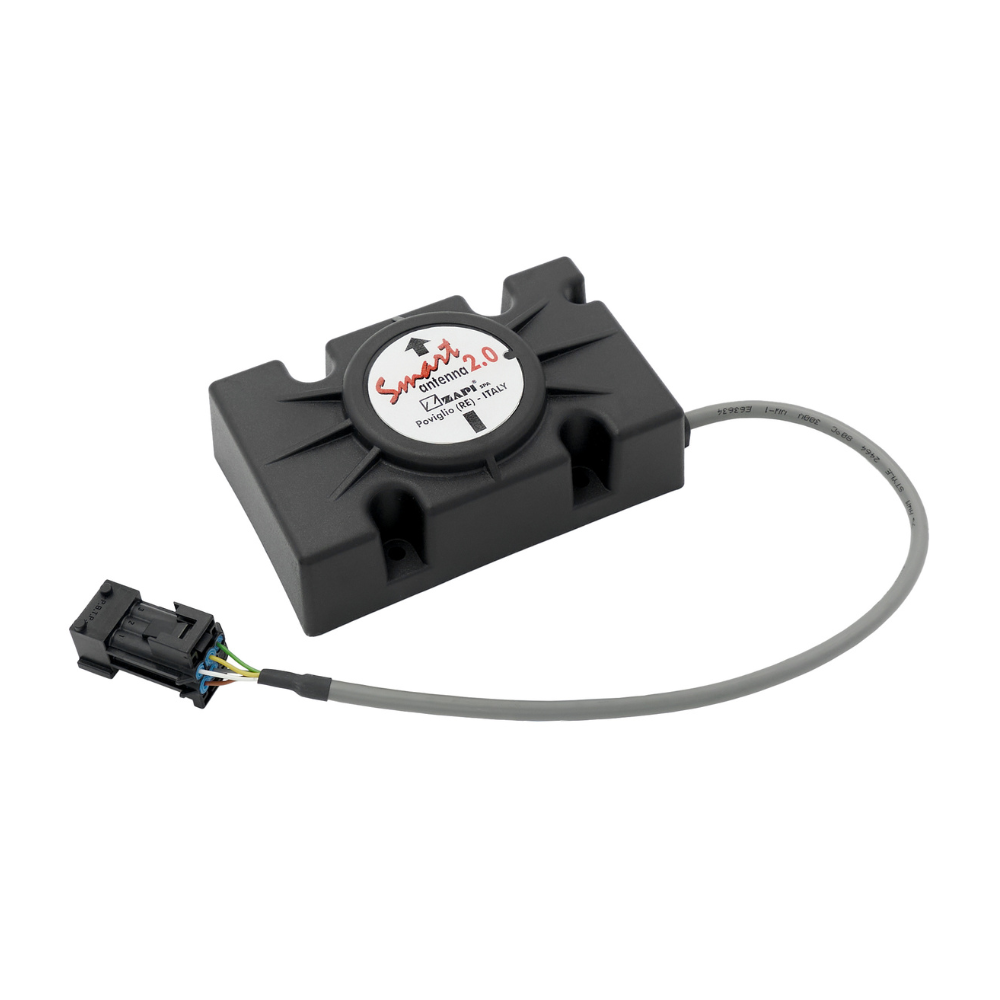

Smart Antenna is a pickup device for the wire guidance service. It must be combined with Zapi EPS-AC0 Ampseal and a wire loop routed in the floor to perform the complete steering services of a warehouse truck.
- Power Section
- Mechanics
- Features
| Power supply | 13 V to 18 V |
| Supply current | 120 mA |
| Note | Antenna power supply is given directly by the inverter |
| Dimensions | 125x78x40 mm |
- Supply voltage: 13 V ÷ 18 V
- Field frequency: 5.2 kHz ÷ 10 kHz
- Automatic gain control
- Provided information: lateral deviation, approach angle, field presence and field strength
CAN BRIDGE

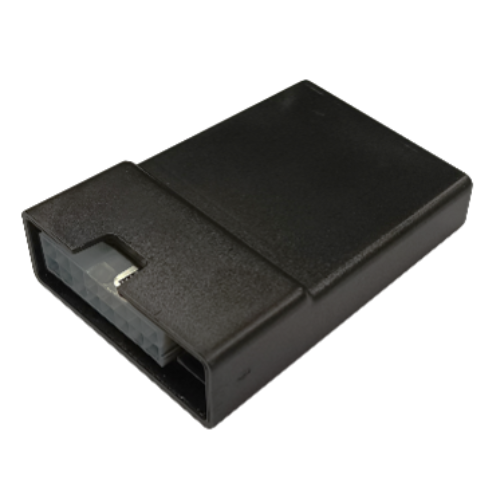

CAN Bridge is a module capable of bridging two CAN networks or two sub-networks having different ground references by an isolated interface.
.png?width=500&height=500&name=Untitled%20design%20(63).png "CANBRIDGE")
- Power Section
- Mechanics
- Features
| Power supply | 9 V to 24 V |
| Ambient temperature range | -40 ºC to +50 ºC |
| Dimensions | 76.5x53x19 mm |
| Connectors | Molex Minifit 16 pins |
| Protection | IP54 |
- Supply voltage: 9 V ÷ 24 V
- Two supply rails, one on each side of the isolation
- Maximum CANH, CANL voltage to reference: +-80 V
- 120 Ω termination resistors upon external short circuit
- Slope control upon external short circuit
- Physical interface according to ISO 11898-2
- Baud rate: 20, 50, 125, 250, 500, 800, 1000 kbit/s
- Molex Minifit 16 pins
- IP54 compliant
CAN REPEATER

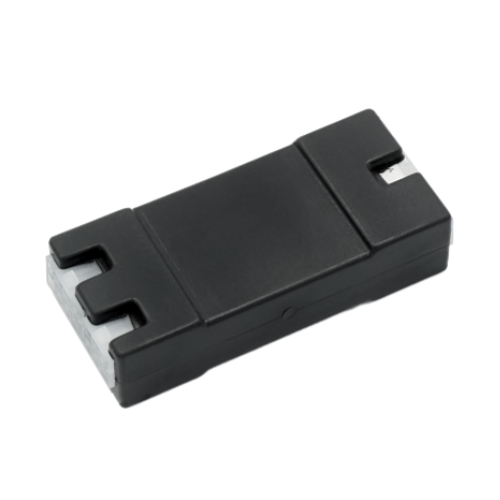

CAN Repeater is a module capable of putting into communication two CAN networks or two sub-networks having different ground references by an isolated interface.
.png?width=500&height=500&name=Untitled%20design%20(64).png "can repeater")
- Power Section
- Mechanics
- Features
| Power supply | 9 V to 24 V |
| Ambient temperature range | -40 ºC to +50 ºC |
| Dimensions | 89x38x20 mm |
| Connectors | Three Molex Minifit 6, 8, and 16 pins |
| Protection | IP54 |
- Supply voltage: 9 V ÷ 24 V
- Single supply isolated from the CAN interfaces
- Maximum CANH, CANL voltage to reference: +-150 V
- Two CAN interfaces on each side of the isolation, with and without 120 Ω termination resistor
- Physical interface according to ISO 11898-2
- Baud rate: 20, 50, 125, 250, 500, 800, 1000 kbit/s
- 3 Molex Minifit connectors (16 + 8 + 6 pins)
- IP54 compliant
RESOLVER INTERFACE
Resolver Interface is a module to be used to interface a resolver with a Zapi drive, produce the proper excitation to the primary coil of the resolver, and pick up the response on the two secondary windings. Its design makes it compatible with most of the resolver models on the market.
- Power Section
- Mechanics
- Features
| Power supply | 12 V |
| Ambient temperature range | -40 ºC to +50 ºC |
| Dimensions | 89x38x20 mm |
| Connectors | Three Molex Minifit 6, 8, and 16 pins |
| Protection | IP54 |
- 12 V
- Differential excitation
- Dual differential pick-up
- Two levels of sensitivity are available
- 3 Molex Minifit connectors (16 + 8 + 6 pins)
- IP54 compliant
TOPO PEDAL

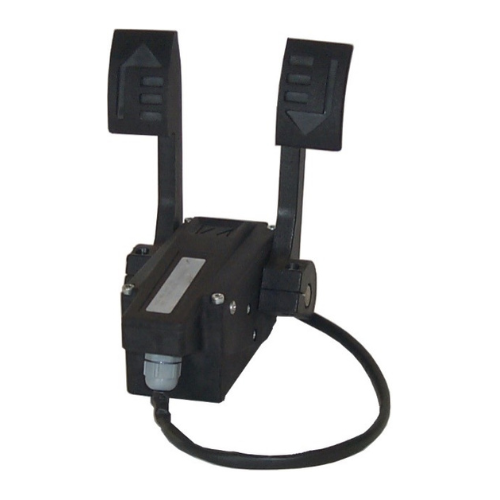

The TOPO Pedal is compact, simple, and rugged. Its refined mechanism and specific electronics ensure precise and reliable sensing of the mechanical position over the entire 27° span.
.png?width=500&height=500&name=Untitled%20design%20(65).png "topo pedal")
- Power Section
- Mechanics
- Features
| Power supply | 12 V |
| Dimensions | 154x148x190 mm |
| Connector | AMP MATE-N-LOK 6 pins |
| Protection | IP65 |
- 12 V
- Inductive sensing
- Amp MATE-N-LOK 6 pins or Deutz or open leads
- IP65 compliant
- Single body, single pedal or double pedal
