Zapi - AC Series Inverters

Portfolio of high-performance inverters (motor controllers) to accommodate a wide range of battery-powered electric and hybrid functionality, including traction, pump, steering, and generator applications.

Designed to maximize OEM flexibility, several motor technologies are supported with specific models offering continuous power levels from 1 to 50 kW and nominal battery voltages from 24 to 120 Vdc.

In addition, speed or torque controls, a range of I/O’s and sensors, and CAN bus is available for design engineers to work with.

Power supply	24 V, 24-36 V, 48 V
Maximum current (2')	24 V: 120 to 220 Arms 24-36 V: 150 Arms 48 V: 125 Arms
Booster current	170 Arms (10”)
Ambient temperature range	-30 °C to +40 °C
Maximum heatsink temperature	78 °C (start of current reduction)

Dimensions	140x180x58 mm
Connector	Mini-Fit
Protection	IP54

Can interface
Serial link
Digital I/O
Analog input

Power supply	120 V
Maximum current (2')	500 Arms
Ambient temperature range	-30 °C to +40 °C
Maximum heatsink temperature	75 °C (start of current reduction)

Dimensions	250x300x95 mm (baseplate version)
Connector	Double Ampseal
Protection	IP65
Options	Available with Aluminum base plate or with finned heatsink

Double microcontroller architecture
Can interface
FOC control (with torque or speed control)
Digital I/O
Analog input

AC SERIES INVERTERS

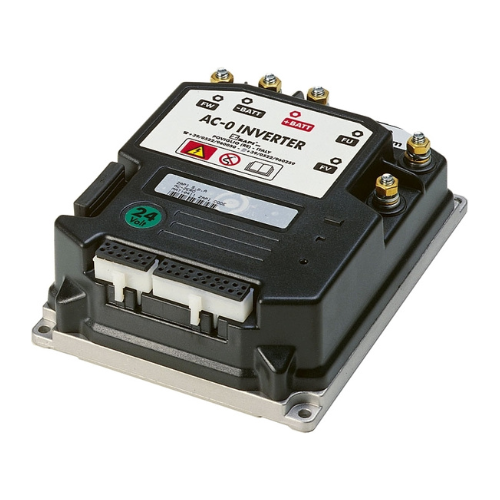

AC-0

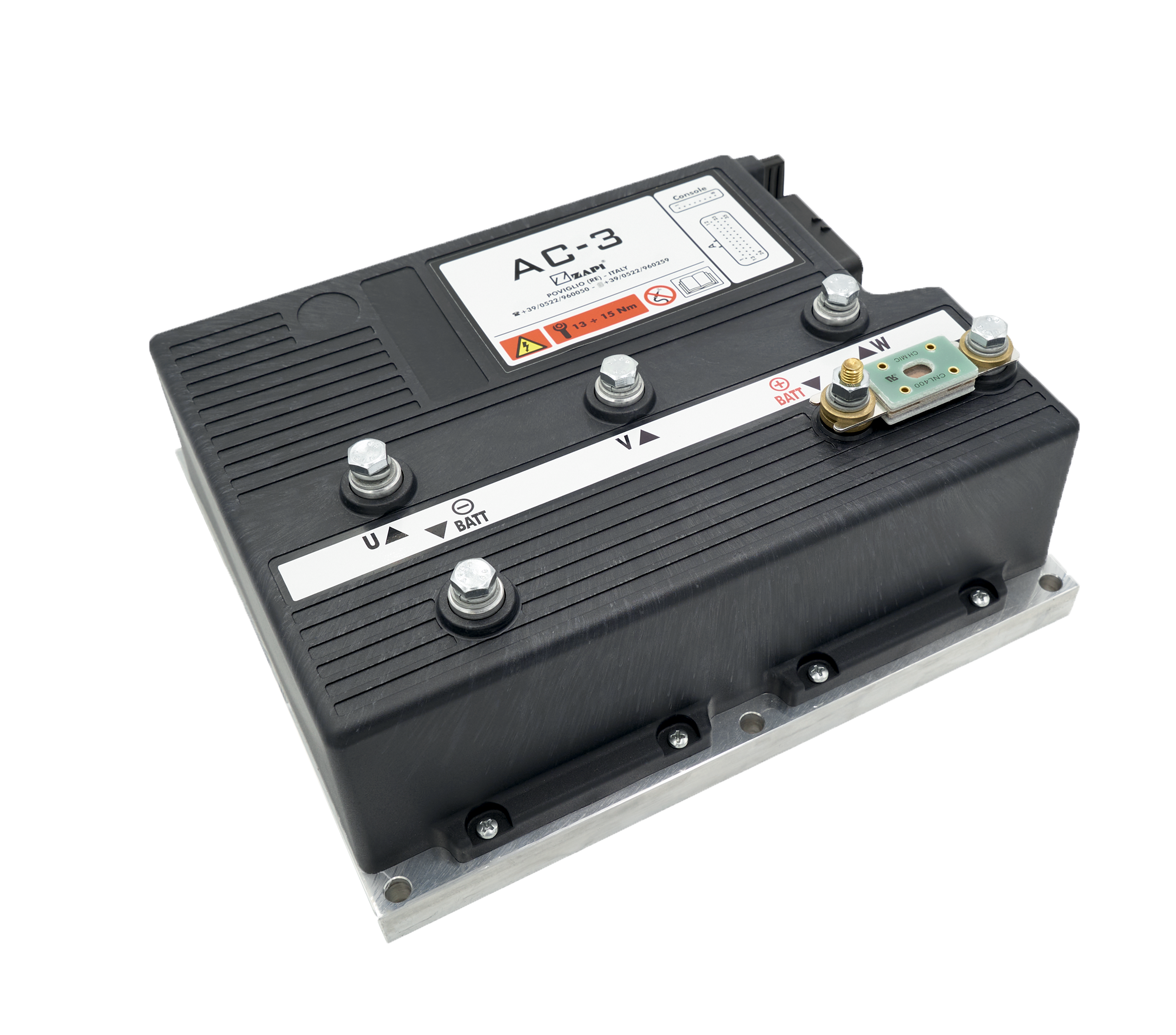

AC-3
